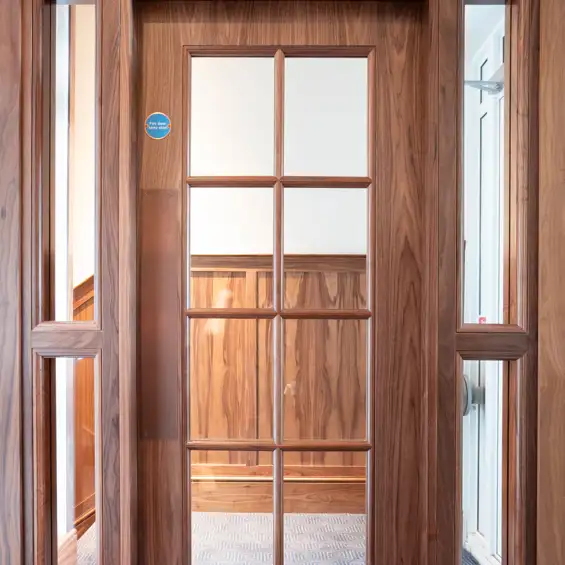

(FSPEC07) Specification Forza FD30 Timber Frame Internal Screen

MANUFACTURER
Forza Doors Limited, 24a/24c Star Road Trading Estate, Star Road, Partridge Green, Horsham, West Sussex, RH13 8RA, England, UK
Telephone: +44(0)1403 711126, Fax: +44(0)1403 711229
Email: sales@forza-doors.com

DETAILED DESCRIPTION
Forza timber &/or MDF frame fire screen solutions provide a comprehensive range of Standard Elevations comprising glazed and door modules providing 30 minute fire resistance performance when adjudged against BS476: part 22:1987. 30 minute insulation is available dependant on glass specified, as are mullion free elevations.

Forza timber framed glazed screens comply with the structural guidelines recommended in BS5234-2 Paritions 1992 and BS6180-2011 Barriers in and about Buildings, Code of Practice.

OPTIONS
TIMBER FRAME STANDARD ELEVATIONS REFERENCE & TYPE:

SA: door & fanlight module plus three dado glazed modules FD30/0, FD30/30
SB: glazed module plus two dado glazed modules FD30/0, FD30/30
SC: door module plus three dado glazed modules FD30/0, FD30/30
SD: central door module plus two full glazed modules FD30/0, FD30/30
SE: three full glazed modules FD30/0, FD30/30
SF: two full glazed module plus door module FD30/0, FD30/30
SK: four full glazed modules plus central door module FD30/0, FD30/30
SG: two full glazed modules plus door module plus transomed glazed overpanel FD30/0
SH: three full glazed modules plus transomed glazed overpanel FD30/0
SI: two full glazed modules plus door module plus full transomed overpanel FD30/0
SJ: four full glazed modules plus central double door module FD30/0, FD30/30
SP: single full glazed module plus door module plus transomed glazed overpanel FD30/30
SQ: two full glazed modules plus transomed overpanel FD30/30
SL: three full glazed modules mullion free FD30/30
SM: three full glazed modules mullion free plus door module FD30/30
SN: four full glazed modules mullion free plus central door module FD30/30
SO: four full glazed modules mullion free plus double door module FD30/30

BESPOKE ELEVATIONS as per project drawings

LINER & BEAD
TIMBER
Solid Softwood or Hardwood of minimum density 510kg/m3. Timber quality and moisture content in accordance with BS EN 942: 1996.
Perimeter liner & vertical mullions: minimum depth 79mm x minimum thickness 32mm
Door mullion/frame & Transoms: minimum depth 79mm x minimum thickness 44mm
Flush Bead: minimum depth (to suit glass) x minimum thickness 27mm

MDF
Veneer wrap MDF of minimum density 700Kg/m3 edge lipped with 4-9mm hardwood timber.
Moisture content in accordance with BS EN 942:1996
Perimeter liner /door & vertical mullions/transoms: minimum depth 79mm x minimum thickness 45mm
Flush bead: minimum depth (to suit glass) x minimum thickness 27mm

TIMBER & MDF FRAME FINISH AS DELIVERED
Clear/tinted: two coats of high solid acid-catalyst lacquer, 20% gloss / other Stained ….. Colour & finished with two coats high solid acid catalyst lacquer
Paint: two coats pigmented precat lacquer
For onsite finishing by others:
Pre-cat primer unsanded for onsite denib & coat with either standard water based latex / acrylic or oil based (alkyd) topcoat paint .

GLAZING
FD30/0 Fire Glass
Forza code GFP7: 7mm fire glass. Weight 17Kgs/m2. For elevation type SA, SB, SC
Forza code GFP13:13mm fire glass. Weight 27Kgs/m2. For elevation type SD, SE, SF, SK, SJ
Forza code GFS12: 12mm fire glass. Weight 28Kgs/m2. For elevation type SG, SH, SI.
FD30/30 Fire Glass
Forza code GFP16: 16mm fire glass. Weight 40Kgs/m2. / GFP20: 20mm fire glass weight 48kgs/m2 / GFSP15: 15mm fire glass weight 35kgs/m2 For elevation type SA, SB, SC, SD, SE, SF, SK, SP, SQ, SJ.
Forza code GFP16MF: 16mm fire glass. Weight 40Kgs/m2 / GFP20MF: 20mm fire glass weight 48kgs/m2 For elevation type SL, SM, SN, SO

GLAZED FRAME SEALS
Glass codes GFP7, GFP13, GFP16, GFP16MF, GFP20, GFP20MF, GFSP15: Closed cell (EPDM) foam 12 x 5mm
Glass code GFS12: Therm-A-Glaze30 (tg3)

MULLION FREE BUTT JOINT
Dow Corning Firestop 700: 5mm max thick butt joint.

FIRE RESISTANCE RATING
FD30/0, FD30/30: 30 Minutes integrity / (insulation) to BS 476: Part 22:1987

SOUND INSULATION
Not Required / Required
Glass code GFP7 Weighted Sound Reduction Index (Rw) 34(0;-3)dB
Glass code GFP13 Weighted Sound Reduction Index (Rw) 36(-1;-3)dB
Glass code GFP16/GFP16MF/GFP20/GFP20MF Weighted Sound Reduction Index (Rw) 39(-1;-3)dB
Glass code GFS12 Weighted Sound Reduction Index (Rw) 34(-2;-3)dB
Glass code GFSP15 Weighted Sound Reduction Index (Rw) 38(-1;-3)dB
Rating according to BS EN ISO 717-1:1997 from tests and measurements conducted in accordance with BS EN ISO 140-3:1995.

STRUCTURAL PERFORMANCE
Glass safety rating to BS6206 (BS EN12600)
Glass code GFP7: Class C (3B3)
Glass code GFP13: Class B (2B2)
Glass code GFP16/GFP16MF: Class  B (2B2)
Glass code GFS12: Class  A (1C1)
Glass code GFP20/GFP20MF: Class A (1B1)
Glass code GFSP15: Class A (1B1)
All fire glasses recommended for use with Forza fire screens comply with the recommendations on class of safety glass to be used in critical locations as determined in table 1 of BS6262-4:2005 glazing for Buildings Part 4: Code of practice for safety related to human impact. Forza Timber Framed Screens tested in accordance with BS5234-2 (methods - Annex A/C/E/F) achieved performance levels summarised as grade requirement Severe Duty and comply with the recommended max deflection as a result of horizontal imposed loads detailed in BS6180-2011 Barriers in and about Buildings.

TIMBER MOISTURE CONTENT ON DELIVERY
Comply with BS EN 942:2007 service climate 12-21° c / above 21° c .12 %

SITE CONDITIONS
Conditions for storage, handling, stacking and covering of timber framing and glass panels during installation to comply with manufacturer's instructions.
Post installation temperature to be in region 12°c to 21°c and relative humidity range 40% to 60%.

INSTALLATION
Fix timber & MDF frame(s), glass panel's seals and bead in accordance with Forza Glazed fire screen Installation guide.
